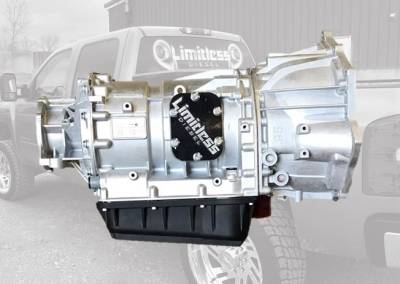

Inglewood Transmission "Juggernaut Jr " 750hp Built Allison 1000

Experience unrivaled performance with Inglewood Transmission's Juggernaut Jr 750HP built Allison 1000. After over 20 years of building performance Allison transmissions we know exactly what works best for each and every application. When it comes to knowing the ins and outs of building Allison 1000 and 2000 series transmissions to hold more power and tow better we are at the top of list. You get all of the knowledge we've learned at the race track combined with the millions of miles our transmissions have traveled in hard working trucks all over the country and beyond combined in one build. This is what separate's us from our competition there are other great builders but none with our substantial resume of accomplishments, time the in industry and knowledge. The Juggernaut Jr Allison 1000 does everything you ask of it and it does it extremely well. It can tow the race trailer to the track, unhook make passes and then tow the family back home without issue. If you do nothing but tow this transmission performs flawlessly and if you hot rod around with a full bolt on truck and go to the track it still performs perfectly.

Converter choice can be a daunting task but we can spec exactly what you need. If the information below doesn't answer your question don't hesitate to message in the website chat or text/call (714)-870-7300 PLEASE NOTE: Stall is not the amount of RPM the converter takes to begin fluid coupling (transferring power from the engine to the transmission) that’s how the are rated they are rated in the gas world and it confuses many customers. In the diesel world it’s the rpm the truck will stall to before pushing through the brakes when at a stop. Flash stall also comes into play which is the rpm the converter will reach when stabbing the throttle at cruising speeds before fluid coupling efficiency increase. This flash helps to spool the turbo. Generally the looser the stall the more the flash.

Stock turbo and stock turbo/s475 compounds who only tow with no "spirited" driving will want a Goerend DK or a Suncoast 1077. If you do like to play still the Goerend R or DL and Suncoast 1078 will work great and give you a little more RPM to play with.

Stock turbo up to 68 mm vvt will want a 1078 or Goerend R or DL even if they tow those converters will work great. All are in the 2100-2300 stall range. 1078 and R converters both have a medium duty pump in the converter (from the larger kodiak trucks) this pump was designed for to be more aggressive at slinging fluid at the turbine to get the bigger heavier trucks moving. Because of this when used in a 3/4 ton truck the fluid coupling is very efficient compared to other torque converters that do not utilize it. Suncoast’s 1077 and the entire 7 series line also utilize this pump as does Goerend’s K converter. Suncoast 1055-2 and Goerend K converters can also work great in this application if someone likes a little looser sportier feel.

For large vvt and s300 single chargers/medium compounds Suncoast 1055-2 and Goerend's K converter works great no matter your driving style. The Goerend J is also an option for those wanting more RPM and a sportier feel

For large single s400 and larger singles or large compounds Goerends J and AR work great. Goerend has bolt together torque converter options that work out great for the DIY'er wanting to domhis own changes and refreshes

Any truck using a Goerend converter making over 800hp will want to use the extreme clutch option Goerend offers. Suncoast converters do not need this option as they are good to go as they come.

There will always be special applications and custom stall torque converters are an option contact us if you want something spec'd just for you message us in the website chat or text/call (714)-870-7300

Availability: For local customers or customers wanting to have the installation of their Allison done at Inglewood Transmission it is $1200 with fluid included and we offer SAME DAY turnaround times to have your current transmission built. All you have to do is call or text (714) 870-7300 and schedule an appointment and be here by 9:00 a.m and you'll drive home the same day with your new built transmission. Installation process includes hot flush, fluid and transmission relearn Freight shipped units have a 2-4 week lead time.
Pricing: $6,495.00
5 5 2

Customize Your Item

Shipping/Core return *
- Torque converter options -
- Drive Type -
 * required
Juggernaut Juice ATF *
- Model/Year -
 * required
- Deep pan -
- Billet Parts -
- Transmission Core Charge -
 * required
Payment method *
Warranty *
Hot Flush *
Commercial shipping address *
Billing/Shipping Address *


Inglewood Built Transmission Includes-

- Track/Street proven clutch clearance and layout
- Mixture of Raybestos and Alto Clutches
- 2011+ (LML) apply pistons & return springs
- New Bearings, Bushings, Seals, Gaskets, filters
- Internal harness fix
- C1-C5 clutches ( These are the only clutch packs in all Allison 5 & 6 speed models)
- RatioTek pressure spring/shift valve springs
- Upgraded proprietary trim valve springs
- Modified TransGo Shift Kit
- Custom fluid circuits
- Internal C3 clutch oiling modification
- Fixes P0700 P0762 p0735 p0776 P0777 diagnostic codes

If you have any questions message our live chat here on the website, Email Sales@inglewoodtransmission.com or call or text 714-870-7300 for more info.

Warranty Info

Inglewood Transmission warrants components against defects in our workmanship and materials for 4 years from date of purchase used in accordance with the terms and limitations below: (As of 1/1/2023)

- The torque converter will only be warranted by the original manufacturer (Suncoast,Goerend, BD, etc.) and NOT by Inglewood Transmission.
- All claims related to defects in the torque converter shall be made directly with the product manufacturer and not with Inglewood Transmission.
- Inglewood Transmission does not warranty any failures due to or related to broken, sheared, fractured shafts, hard parts and/or cases; or any damage caused by broken shafts, hard parts, or cases.
- Inglewood Transmission does not warranty ANY transmission electrical components for more than 1 year after installation or delivery of transmission.
- Inglewood transmission will not warranty any main cases, extension housings or bellhousings that have cracked or have been compromised.
- Inglewood Transmission will not warranty damage to Stock Enhanced, 525 or 750 horsepower transmissions if that damage was caused by exceeding the power capacity of that particular transmission (overpowering).
- Inglewood Transmission will not warranty any damages resulting from improper installation, negligence, alterations, accidents or improper use.
- Inglewood Transmission does not warranty any failures due to oversized tires without proper regearing.
- Inglewood Transmission warranty failures caused by bearing failure after 1 month as such failures are not related to the quality or the assembly of the build itself.
- Any repairs to a transmission not authorized by Inglewood Transmission will void warranty and will not be covered by Inglewood Transmission.
- If the vehicle's transmission lines and transmission cooler were not hot flushed or replaced (including the radiator) prior to installation of the new unit it will not be covered under Inglewood Transmissions warranty.
- Inglewood Transmission will not provide warranty repair or service to any owner without properly documented maintenance records (provided by a qualified automotive service technician) that show all of the following:
1. Maintenance was performed at Inglewood Transmission's recommended intervals 0f 6000-10,000 miles using a Allison manufactured external filter (Spin on)
2. A internal filter (sump filter) and fluid change was performed at Inglewood transmission's recommended interval of every 30,000 miles utilizing Allison components and recommended fluid. DEX 3 TranSynd, Cam 2 Synthetic, QuatraSyn, Royal Purple MAX, Schaeffer's All-Trans,Lucas sure-shift. If a fluid to use is in question contact us at (714) 870-7300
3. Warranty is void if transmission core is not returned within 90 days unless otherwise agreed upon and put in writing at the time of purchase.

WARRANTY LIMITED TO REPAIR Inglewood Transmissions liability under this warranty is solely limited to repair or replacement of defective parts and/or workmanship. Inglewood Transmission shall not be liable for any incidental, special, or consequential, or punitive damages including any and all towing charges. Freight cost and subsequent removal and reinstall labor charges not conducted inside Inglewood Transmissions facility are 100% the consumer's liability.
TRANSFER OF WARRANTY - This warranty is made to the original purchaser of the transmission ONLY and is tied to the VIN provided at time of purchase. You will need to provide us with the original invoice number, date of purchase, and reason for warranty claim. You are responsible for any shipping, and all risk of damage.
